Cast Resin Dry-Type Transformers for Industrial and Building Power Systems
Time：2025-11-15 Auther：ZTelec-www.ztelectransformer.com
Cast resin dry-type transformers have become a preferred solution in industrial facilities and modern buildings due to their outstanding fire safety, reliability, and energy-saving performance. As critical equipment in power distribution, they ensure stable and continuous power supply across a wide range of application environments.

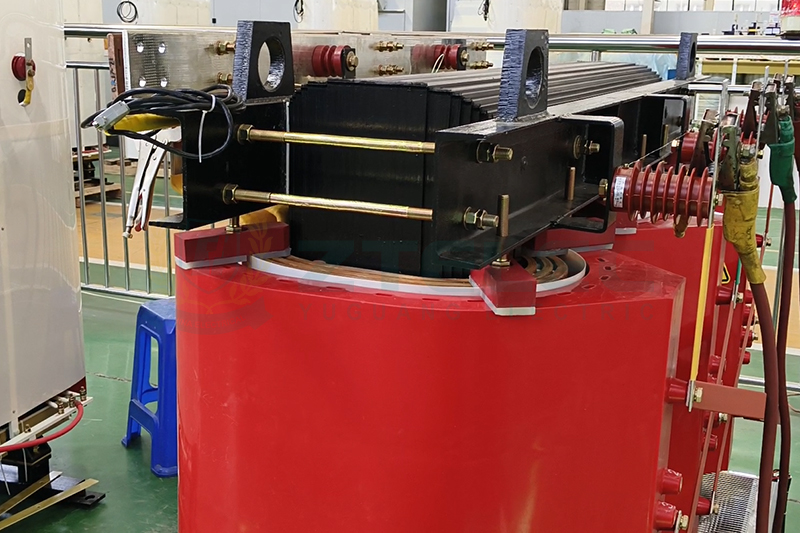

What Is a Cast Resin Dry-Type Transformer?
A cast resin dry-type transformer uses high-quality epoxy resin that is vacuum-cast to fully encapsulate its windings. This solid insulation structure eliminates the need for insulating oil used in oil-immersed transformers, completely avoiding risks of oil leakage, fire hazards, and explosions.
Why Cast Resin Dry-Type Transformers Are Ideal for Industrial and Building Use
Superior Safety and Fire Resistance
The epoxy resin insulation is self-extinguishing and contains no flammable liquids, making it highly suitable for locations with strict fire-protection standards, including high-rise buildings, commercial complexes, hospitals, schools, airports, subway stations, petrochemical plants, and mines.
High Reliability and Extended Service Life
Its fully encapsulated windings resist moisture, dust, and corrosion, ensuring consistent insulation performance even in humid, coastal, or dusty environments. This significantly reduces failures caused by environmental factors and guarantees stable long-term operation.
Maintenance-Free Operation
With no insulating oil to test or replace, maintenance requirements are minimal. The solid resin casting structure reduces the need for routine cleaning, helping businesses cut maintenance costs.
Environmentally Friendly and Energy Efficient
The oil-free design prevents soil and water contamination, while recyclable materials support green power initiatives. Using premium silicon steel or amorphous alloy cores, these transformers offer extremely low losses and meet global energy-efficiency standards.
Flexible Installation Options
Their compact structure requires minimal installation space and allows placement close to load centers, reducing wiring distances and lowering line losses. They can also be installed on upper floors, improving layout flexibility in industrial facilities and buildings.
Industrial and Building Application Scenarios
Industrial Applications
Factories with automated production lines, large motors, and variable-frequency drives benefit from the strong overload capacity and harmonic resistance of cast resin dry-type transformers. They ensure stable, uninterrupted operation of critical industrial equipment.
Building Applications
Ideal for modern intelligent buildings, these transformers deliver low-noise, clean, and stable power for elevators, HVAC systems, data centers, and indoor power distribution rooms.
FAQs
Q1: What is the main difference between cast resin dry-type transformers and oil-immersed transformers?
Cast resin transformers use solid epoxy resin for insulation, while oil-immersed transformers rely on insulating oil. This gives cast resin models stronger fire safety, environmental protection, and lower maintenance requirements.
Q2: Do cast resin transformers require a dedicated cooling system?

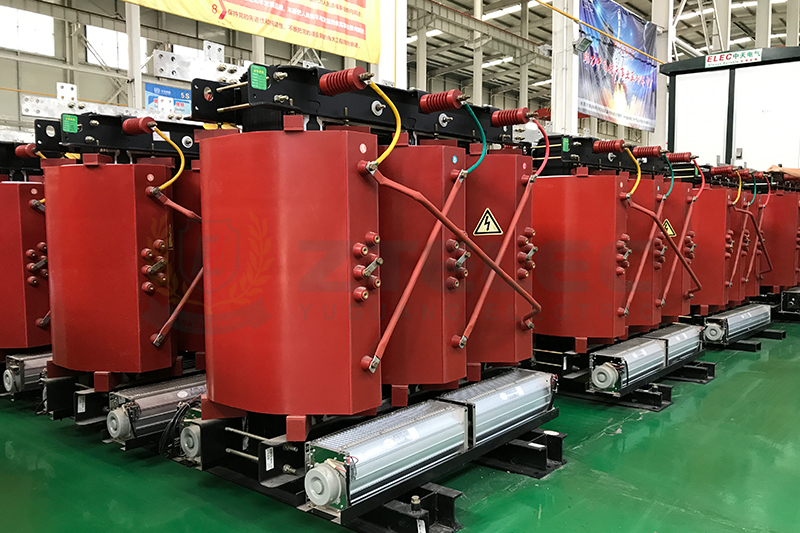

Normally no. They rely on natural air cooling (AN) or forced air cooling (AF). The resin structure conducts heat efficiently to the surrounding air.
Q3: What parameters should be considered when selecting a cast resin transformer?
Key factors include rated capacity (kVA), voltage level, impedance voltage, efficiency rating, protection level, and insulation class.
