With rapid urbanization and the advancement of industrial automation, modern power grids demand higher levels of safety, stability, and energy efficiency. As essential equipment in medium- and low-voltage distribution networks, three-phase dry-type distribution transformers have become widely adopted due to their superior performance, safety features, and environmentally friendly characteristics.
What Are Three-Phase Dry-Type Distribution Transformers?

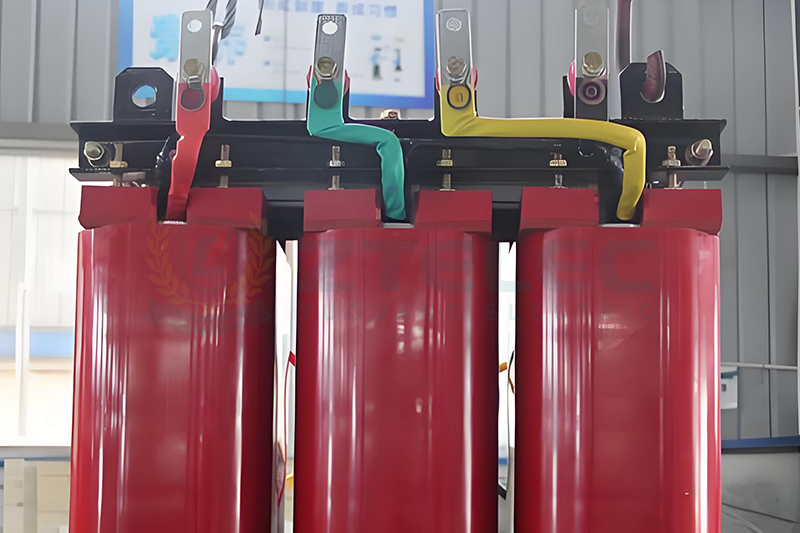

Three-phase dry-type transformers convert high-voltage electricity into safe, usable medium- or low-voltage power through electromagnetic induction. They are widely used in urban distribution grids, industrial plants, commercial centers, and municipal infrastructure. Their main advantages include:
Oil-Free Design: Epoxy resin casting or vacuum impregnation eliminates oil usage and reduces fire risks.
High Reliability: High-quality cores and windings improve overload capacity and short-circuit resistance.
Low Maintenance: No oil testing or replacement is required, reducing labor and operating costs.
Strong Environmental Adaptability: Moisture-resistant, dust-proof, and corrosion-resistant for demanding environments.

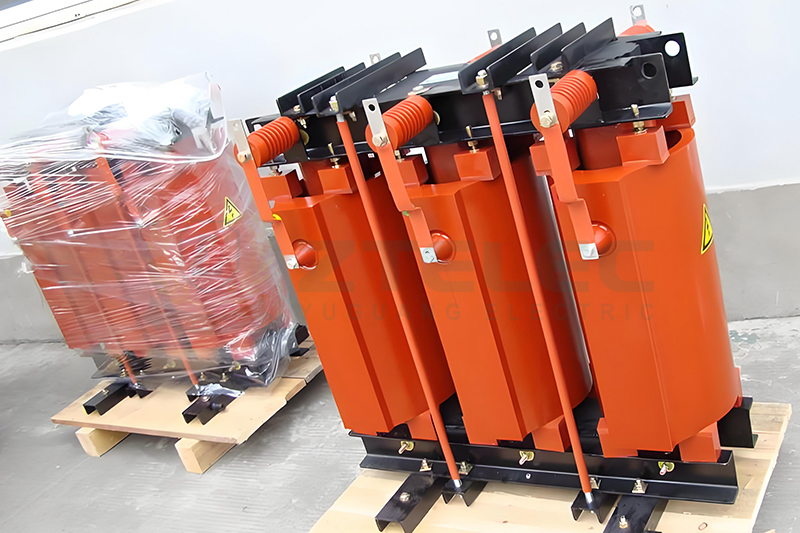

Common models include SCB10 and SCB11 epoxy resin cast transformers, along with SCBH15 high-efficiency amorphous alloy dry-type transformers.
Core Advantages of Three-Phase Dry-Type Distribution Transformers
High Efficiency and Energy Savings
High-performance dry-type transformers use high-grade cold-rolled silicon steel or amorphous alloy cores. Anti-loss core technology significantly reduces no-load and load losses. Energy efficiency levels can reach IE4 or IE5, helping large electricity users reduce operating costs and carbon emissions.
Enhanced Safety
Unlike oil-immersed transformers, dry-type transformers feature epoxy resin casting or VPI insulation technology, making them non-flammable and non-explosive. Without oil as a cooling medium, environmental hazards and fire risks are eliminated. They are ideal for hospitals, schools, airports, subways, commercial buildings, petrochemical plants, mining sites, and data centers.
Low Maintenance and Easy Operation
Dry-type transformers are designed for long-term durability. Moisture-proof, dust-proof, and corrosion-resistant, they operate reliably in environments from -25°C to +50°C. With no need for oil sampling or filtration, maintenance requirements are significantly reduced.
Compact and Space-Saving
These transformers feature a compact structure and high power density. They are ideal for confined distribution rooms, modular substations, and areas close to load centers to minimize cable losses and improve power delivery quality.
Environmentally Friendly and Recyclable
Dry-type transformers contain no PCBs or harmful substances and are fully recyclable. Noise levels below 55 dB meet the requirements of LEED, BREEAM, and other green building certifications, supporting sustainable engineering and environmental goals.
Core Application Scenarios
Smart Grids & Renewable Energy: Suitable for solar and wind energy grid integration, providing stable output and supporting smart grid upgrades.
Industry 4.0 & Manufacturing: Provides reliable power for automated production, robotics, and VFD systems.
Data Centers & ICT Facilities: Ensures stable server operations and supports optimized PUE performance.
Three-Phase Dry-Type Distribution Transformer Selection Guide
Capacity & Load Type: SCB10/11 for stable loads; SCBH15 for high-impact or 24/7 continuous loads.
Voltage & Connection: Common voltage levels include 10/0.4kV and 6/0.4kV; typical connections include Dyn11 and Yyn0.
Installation Environment: High humidity or corrosive areas require higher insulation levels and strong environmental protection.
Intelligent Functions: For data centers and industrial facilities, choose models supporting remote monitoring, temperature alarms, and predictive maintenance.
Three-phase dry-type distribution transformers deliver outstanding safety, reliability, high efficiency, low maintenance requirements, and environmental benefits. They meet the diverse and demanding needs of modern power grids and industrial applications. Whether for utility upgrades, industrial power distribution, commercial buildings, or smart infrastructure, these transformers provide stable, long-lasting, and sustainable power support.
They represent the perfect balance between high performance and environmental responsibility, ensuring reliable and efficient operation throughout the entire power distribution system.
