Dry-Type Rectifier Transformers: Applications in Industry, Energy, Transportation, and Data Center
Time：2025-04-28 Auther：ZTelec-www.ztelectransformer.com
In the modern industrial and energy systems, dry-type rectifier transformers have become essential power equipment. Thanks to their oil-free, eco-friendly, fireproof, and explosion-proof properties, they are widely used across industrial manufacturing, renewable energy generation, rail transportation, and data centers. Efficient application of dry-type rectifier transformers is crucial for ensuring system stability and optimizing energy utilization.
1. Industrial Manufacturing Scenarios
Industries like metallurgy, chemical processing, and mechanical manufacturing feature complex load patterns and drastic power fluctuations. Dry-type rectifier transformers must be precisely selected and properly maintained to meet these demands.
Accurate Selection
- Analyze rated power, starting current peaks, and load fluctuation ranges.
- Choose transformer capacity 1.2–1.5 times the total load to handle peak demands.
Scientific Installation
- Install in ventilated, dry areas free of corrosive gases.
- Deploy forced air cooling or water cooling systems for high-power equipment.
Intelligent Operation and Maintenance
- Implement real-time monitoring for voltage, current, and temperature.
- Set automatic alarms when winding temperatures exceed 100°C.
- Conduct insulation resistance tests biannually to prevent potential failures.

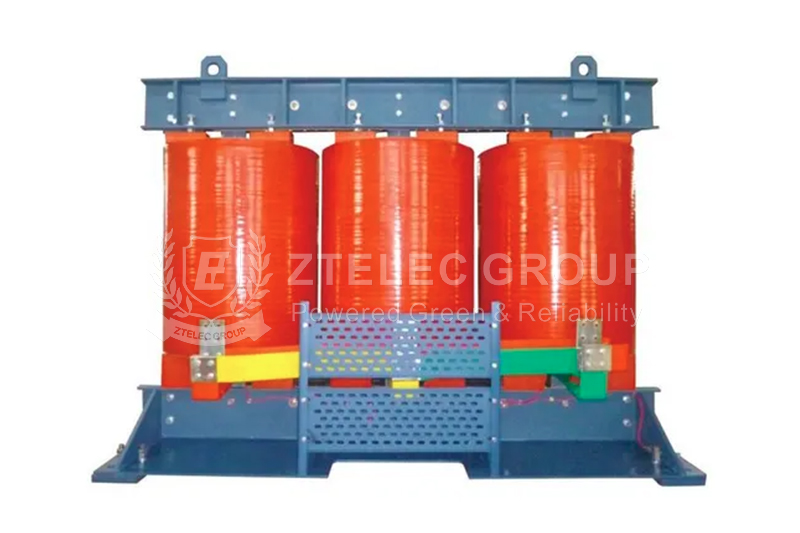

2. New Energy Power Generation Scenarios
Photovoltaic and wind power systems feature intermittent output and high harmonics, posing challenges for transformers.
Wide Voltage Range and Harmonic Suppression
- Select transformers capable of stable operation between 200V–1000V.
- Use 12-pulse or 24-pulse rectification to manage high harmonic content.
System Integration and Coordinated Control
- Ensure deep integration with inverters and energy storage systems.
- Enable automatic charging and discharging to stabilize power supply.
Environmental Adaptability and Remote Maintenance
- Choose IP65-rated transformers for outdoor use; apply anti-corrosion coatings for offshore setups.
- Leverage IoT technology for remote monitoring and predictive maintenance.

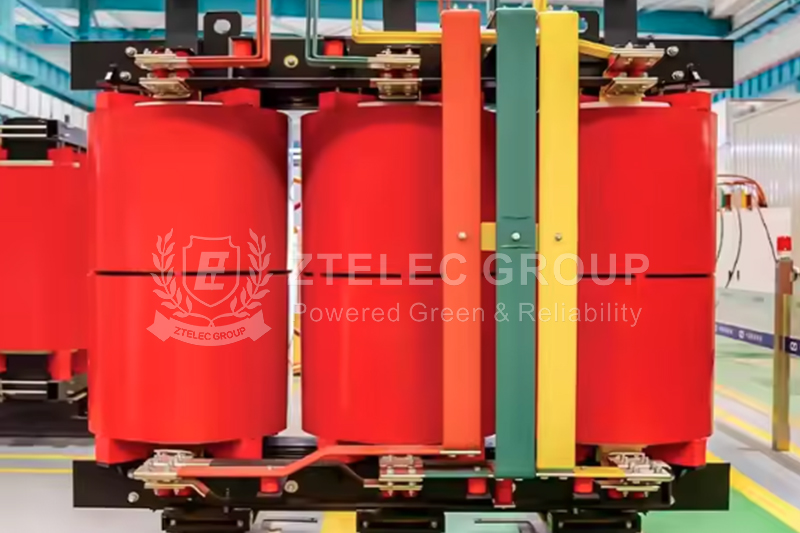

3. Transportation Scenarios
Power systems for subways, high-speed trains, and EV charging stations demand high reliability and space efficiency.
Miniaturization and Energy-Saving Design
- Utilize dry-type rectifier transformers with foil windings to reduce size by 30%.
- Use low-loss core materials to lower operational costs.
Protection and Anti-Interference
- Install fully enclosed fire- and explosion-proof casings.
- Add shielding and filter circuits to minimize electromagnetic interference.
Real-Time Monitoring and Emergency Response
- Deploy smart monitoring to transmit real-time data to control centers.
- Establish standby switching mechanisms for uninterrupted power supply.
4. Data Center Scenarios
Data centers require continuous, high-quality power, with equipment sensitive to even minor voltage fluctuations and harmonics.
High Reliability and Stable Voltage
- Use N+1 redundancy and dual busbar power systems.
- Employ high short-circuit impedance transformers with AVR technology to maintain voltage within ±1%.
Harmonic Control and Power Optimization
- Install active filters to maintain total harmonic distortion (THD) below 5%.
- Apply dynamic reactive power compensation to boost power factor above 0.98.
Intelligent Early Warning and Green O&M
- Use AI-driven platforms for predictive fault detection based on big data analysis.
- Optimize energy usage by dynamically adjusting transformer operation during low-load periods.
The efficient application of dry-type rectifier transformers across various sectors requires customized strategies for selection, installation, and maintenance. By leveraging advanced technologies and refined management, industries can enhance equipment performance, ensure system reliability, and drive sustainable growth.
