Explore the Advanced Features of Dry-Type Rectifier Transformers
Time：2025-04-29 Auther：ZTelec-www.ztelectransformer.com
Discover how modern dry-type rectifier transformers are revolutionizing industrial power systems with superior performance, intelligent control, and environmental sustainability.
1. Innovative Structural Design

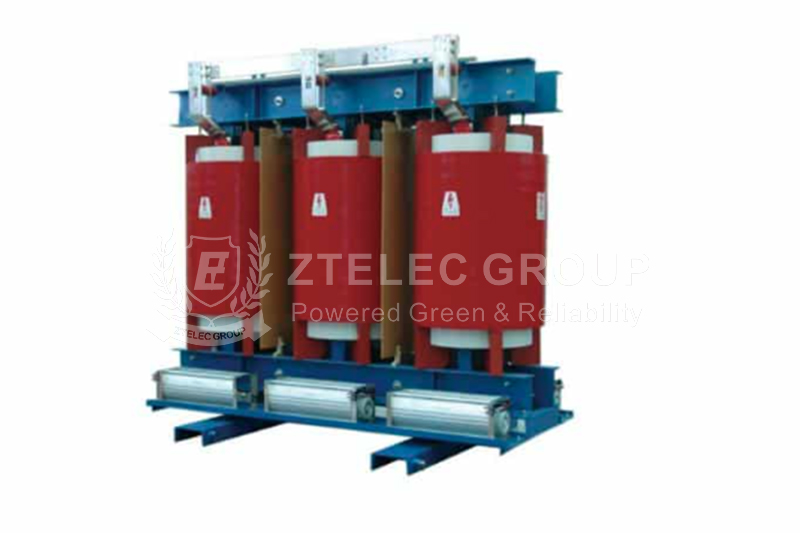

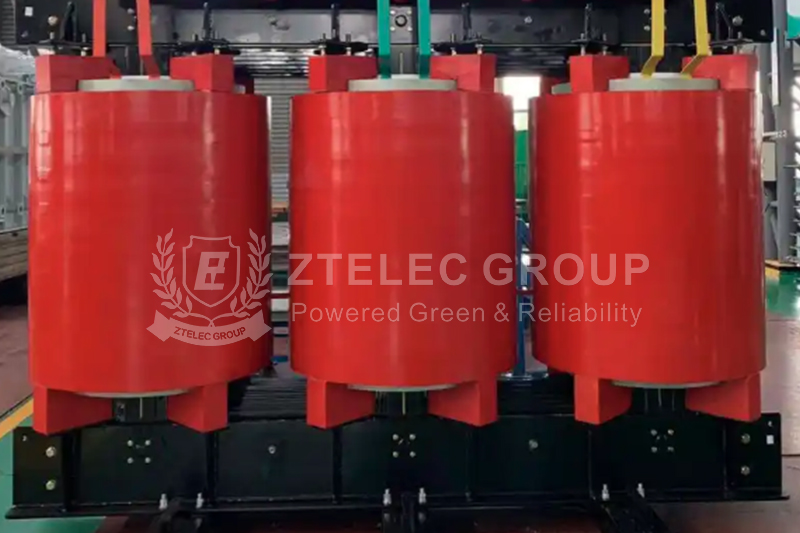

Dry-type rectifier transformers leverage advanced insulation materials such as epoxy resin to ensure compact and lightweight construction without compromising insulation performance. Optimized winding and core structures reduce space occupancy and improve overall system efficiency.
These transformers feature adaptive cooling solutions based on power level:
- Natural air cooling for low-power applications using heat sinks and convection.
- Forced air cooling for mid-to-high power levels using internal fans.
- Water cooling systems for high-end models, ensuring continuous thermal stability.
The enclosure is crafted from corrosion-resistant, high-strength metal and meets IP54 or higher standards. It provides dustproof, waterproof, and moisture-proof capabilities, making it suitable for harsh environments like mining, chemical plants, and maritime operations.
2. Excellent Electrical Performance
Using high-permeability cold-rolled silicon steel and high-conductivity winding materials, dry-type rectifier transformers achieve 3–5% higher energy conversion efficiency than traditional models. Optimized lamination processes reduce magnetic losses and improve system reliability.
Equipped with automatic voltage regulators and on-load tap changers, these transformers offer millisecond response times, maintaining output voltage fluctuations within ±1% of rated levels to ensure a stable power supply.
To combat harmonic distortion, the design integrates:
- Special winding structures
- Electromagnetic shielding
- Harmonic filtering devices
These technologies reduce THD (Total Harmonic Distortion) to under 5%, ensuring a clean power grid environment.
3. Intelligent Control System
Each dry-type rectifier transformer is equipped with an advanced intelligent monitoring system that collects real-time data on voltage, current, and temperature. This data is transmitted remotely for centralized monitoring and diagnostics.
Built-in smart algorithms enable the transformer to auto-adjust the winding turn ratio and output voltage according to load and grid conditions. Additionally, these transformers can seamlessly integrate with rectifiers, inverters, and energy storage systems to optimize power conversion, distribution, and storage in smart grid applications.
4. Environmental and Safety Features
Unlike oil-immersed units, dry-type rectifier transformers rely on dry insulation systems, eliminating oil leakage and minimizing environmental risks. All materials used are eco-friendly and compliant with environmental standards throughout the product life cycle.
Flame-retardant materials greatly reduce the risk of fire, even during short circuits or overheating. In addition, the transformer includes multiple protection mechanisms against overload, short circuit, and overvoltage to ensure safe operation under extreme conditions.
Its modular design also simplifies installation and maintenance, reducing the likelihood of human error and further enhancing operational safety and reliability.
Dry-type rectifier transformers offer a powerful combination of efficiency, intelligence, safety, and sustainability—making them an ideal choice for modern industrial power systems.
