High-Performance 66 kV Oil-Immersed Power Transformer: The Best Choice for Substations and Transmission Systems

Time：2025-11-27    Auther：ZTelec-www.ztelectransformer.com

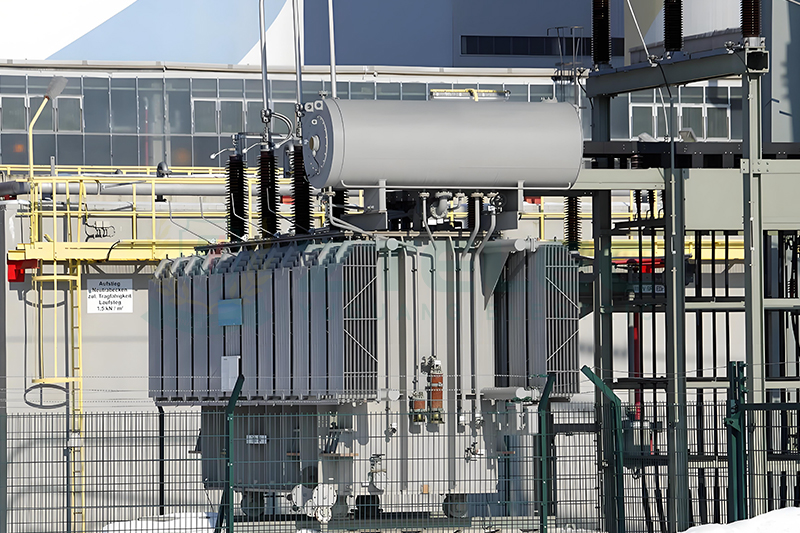

In modern power systems, transformer performance directly influences grid stability and transmission efficiency. The 66 kV oil-immersed power transformer is a core component in substations and transmission systems. With reliable operation, high transmission efficiency, and excellent adaptability across diverse scenarios, it has become a preferred choice in the global energy sector. This article explains its core advantages, application fields, and selection criteria to support engineering decision-making.

Why Choose a 66 kV Oil-Immersed Power Transformer?

The transformer offers high transmission and distribution efficiency. It ensures stable and durable long-term operation, making it suitable for multiple application environments such as substation systems, renewable energy fields, and industrial power loads.

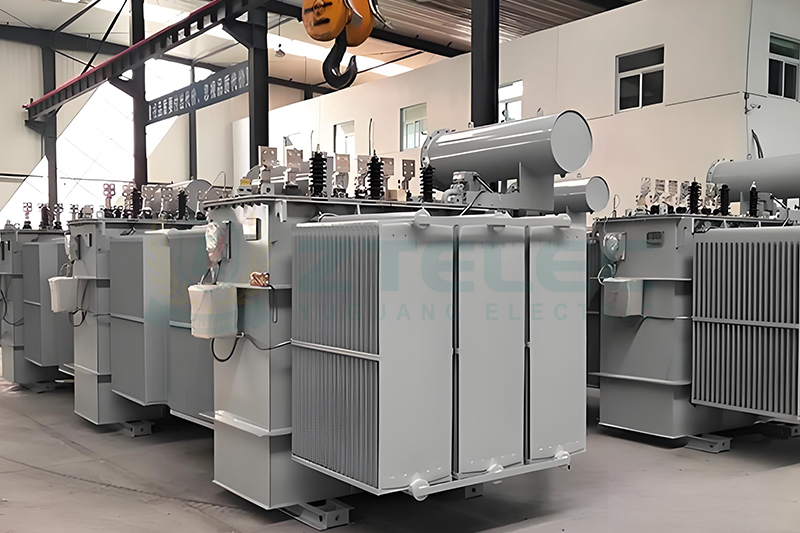

Core Technical Features of the 66 kV Power Transformer

1. High-Efficiency, Low-Loss Design

The 66 kV oil-immersed power transformer uses high-permeability grain-oriented silicon steel and an optimized magnetic circuit structure. Its no-load and load losses are significantly lower than traditional designs, reducing energy consumption throughout the equipment’s service life.

2. Enhanced Insulation System

To meet the insulation requirements of the 66 kV voltage level, the transformer adopts a high-performance insulation system composed of epoxy prepreg (DMD/MYLAR), crepe paper, and oil-impregnated insulating paper. Structural materials such as FR4, G10, G11, GPO-3, and epoxy prepreg tubes ensure mechanical strength. The mixed dielectric medium—high-quality mineral oil or natural ester—further enhances thermal class performance (Class A/Class F) and long-term reliability.

3. Optimized Heat Dissipation and Temperature Rise Control

The transformer supports diverse cooling modes such as OFAF, ONAN, and ONAF. These systems ensure that windings maintain safe temperature rises under heavy loads, extending equipment lifespan and slowing thermal aging.

4. Intelligent Monitoring and Maintenance Support

High-end models integrate advanced monitoring functions, including online oil chromatography, partial discharge monitoring, and real-time temperature/load monitoring. Support for SCADA and IEC 61850 communication helps enhance predictive maintenance and reduce unexpected outages.

Main Application Areas of 66 kV Power Transformers

1. Urban Power Grid Hubs

As a critical part of urban substations, the transformer steps down high-voltage power to 10 kV distribution networks, ensuring stable power for businesses and residential areas.

2. Transmission System Nodes

In long-distance transmission networks, the transformer performs power distribution and voltage regulation. On-load tap changers ensure stable terminal voltage quality.

3. Renewable Energy Grid Connection

Wind farms and solar power plants rely on 66 kV oil-immersed transformers for grid connection. After stepping up voltage, green energy can be safely integrated into the main grid.

4. Industrial Power Supply

Industrial facilities such as steel plants and data centers utilize 66 kV transformers for continuous heavy-load operation. Their strong impact-load resistance maintains uninterrupted production.

How to Select the Best 66 kV Transformer for Your Project?

1. Define Operating Conditions and Load Characteristics

Project owners should evaluate load type, operating duration, impact load conditions, and environmental requirements, as these factors directly influence transformer capacity and temperature rise design.

2. Follow International Standards and Specifications

For safety and compatibility, select transformers that comply with IEC 60076, IEEE C57, and GB/T 1094 series standards.

3. Emphasize Material and Workmanship Quality

Key factors such as insulation class, core lamination precision, copper winding structure, and mechanical strength directly affect service lifespan and performance, making them essential evaluation points.

4. Assess Manufacturer Strength and Testing Capabilities

Choose manufacturers equipped with full routine, type, and special testing capabilities, vacuum drying systems, vacuum oil filling equipment, and complete testing platforms for oil-immersed transformers.

The 66 kV oil-immersed power transformer delivers high performance, long service life, and excellent functional integration. As a vital component of power transmission and distribution systems, it plays an essential role in both new grid construction and system upgrades. Selecting a technologically advanced 66 kV transformer ensures higher reliability, better efficiency, and enhanced economic value.

For detailed product specifications or customized solutions, contact a professional transformer supplier today.
