Oil-Immersed Power Transformer Selection Guide｜2025 Latest Technology
Time：2025-11-28 Auther：ZTelec-www.ztelectransformer.com

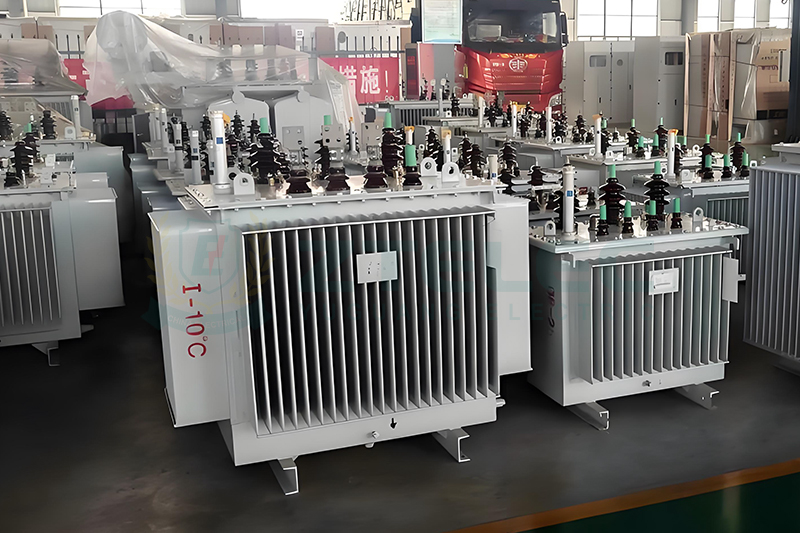

Oil-immersed power transformers are widely recognized for their excellent heat dissipation, long service life, and strong load capability. They are extensively used in distribution systems, industrial parks, transmission and distribution projects, and energy infrastructures. In 2025, the evolution of power grid upgrades, energy-saving policies, and intelligent monitoring technologies is driving new trends in transformer design and material applications.
This article provides a complete selection guide covering performance features, key parameters, national and international standards, and the latest technological advancements.
Core Features of Oil-Immersed Power Transformers
Excellent Heat Dissipation
Cooling is achieved through natural or forced oil circulation, making the transformer suitable for high-load and continuous operation environments.
Long Service Life
Typically operates for 25–30 years with minimal routine maintenance, providing stable lifecycle performance.
High Load Capacity
Strong short-circuit resistance and capability to withstand surge currents make it ideal for industrial and heavy-load applications.
Low Operating Noise
Well-optimized magnetic circuits and structural design effectively reduce operating noise.
2025 Selection Parameters and Technology Analysis
1. Energy Efficiency Level
Transformers must comply with the latest national or international energy efficiency standards. In the high-end market, high-efficiency performance has become the new baseline.
Amorphous Alloy Technology
This technology reduces no-load losses by 60–70% compared to silicon steel transformers. It is ideal for fluctuating load conditions, long-duration light-load operation, or standby power scenarios, effectively reducing total lifecycle cost (TCO).
Next-Generation Oriented Silicon Steel (HiB Steel)
Upgraded silicon steel sheets provide higher magnetic permeability and lower iron losses, suitable for long-term, heavy-load operations.
Three-Dimensional Wound Core Technology
Adopts a three-phase symmetrical 3D core structure for uniform magnetic flux distribution. This significantly reduces no-load losses, no-load current, and noise—an advanced solution for high-efficiency power distribution.
2. Intelligence and Digitalization
By 2025, oil-immersed transformers have evolved into intelligent devices integrated into IoT systems, forming key nodes in smart grid networks.
Built-In Sensor System
DGA online monitoring provides real-time analysis of gases such as H₂, CH₄, and C₂H₂, enabling early fault detection.
Fiber-optic temperature sensing directly measures winding hotspot temperatures, supporting overload control and life assessment.
Additional sensors monitor bushing condition, tap-changer performance, pressure, humidity, and vibration.
Digital Twin & Predictive Maintenance
Through continuous data collection and cloud-based modeling, AI algorithms predict potential failures and issue early warnings. This enhances operational reliability and reduces maintenance costs.
3. Environmental Protection and Safety
Environmentally Friendly Insulating Oil
Natural ester oil: Biodegradable, non-toxic, with a high flash point—ideal for high fire-safety environments and eco-sensitive regions.
Synthetic ester oil: Offers strong moisture resistance and a wider operating temperature range.
Fire and Disaster Resistance
Select transformers that pass sudden short-circuit tests and include reinforced structural designs for earthquake, sandstorm, and extreme weather conditions.
4. Application of New Materials and Processes
Solid Insulating Materials
Nomex® insulation offers high thermal stability (up to 220°C), enhancing overload capacity and extending transformer lifetime.
Vacuum Impregnation Process
Originally used for dry-type transformers, this technique is now applied to specific oil-immersed components to eliminate bubbles and improve insulation reliability.
International and National Standard Requirements
To ensure reliability, oil-immersed transformers should comply with the following standards:
IEC 60076
IEEE C57 series
GB/T 6451, GB/T 1094
Energy efficiency standards: GB 20052 (S11/S13/S15)
For export projects, transformers may require certifications such as CE, KEMA, ASTA, UL, and ISO.
By 2025, oil-immersed power transformers are seeing major advancements in energy efficiency, smart monitoring, and new material applications. Proper selection enhances grid reliability, reduces energy consumption, and minimizes maintenance costs.
Whether for distribution systems, industrial operations, large energy projects, or international engineering contracts, understanding these technical trends enables you to choose stable, efficient, and future-ready oil-immersed transformers.
