Top Choice for Urban and Rural Grid Renovation: 10kV Oil-Immersed Fully Sealed Transformer

Time：2025-10-13    Auther：ZTelec-www.ztelectransformer.com

With the rapid upgrade and intelligent transformation of urban and rural power grids, medium-voltage transformers are required to meet higher standards of performance and reliability. The 10kV oil-immersed fully sealed transformer stands out as a preferred choice due to its efficiency, safety, reliability, and ease of maintenance. This article provides an in-depth analysis of its technical features, operational advantages, energy efficiency, and application scenarios, helping engineers and utility companies select the optimal transformer solution.

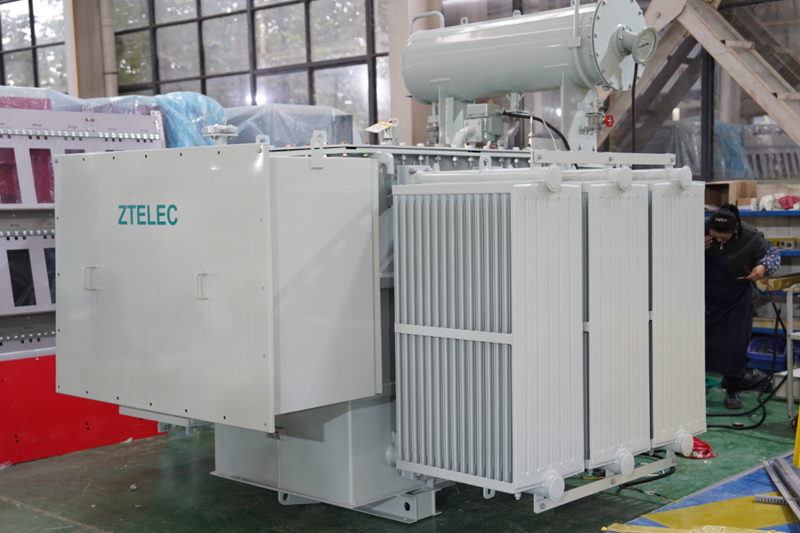

1. Overview of 10kV Oil-Immersed Fully Sealed Transformer

The 10kV oil-immersed fully sealed transformer uses high-insulation oil as the cooling medium and a fully sealed structure to prevent oil leakage and external contamination. Its core components include high-quality silicon steel core, fully insulated copper or aluminum windings, the oil tank, and sealing devices. The fully sealed design not only enhances safety and durability but also reduces the impact of external environments on transformer operation, ensuring stable performance under various conditions.

2. Structure and Technical Features

The 10kV oil-immersed fully sealed transformer uses advanced core and winding design to reduce no-load and load losses, improving overall efficiency. Key technical features include:

1. Fully Sealed Oil Tank: High-strength steel plate construction combined with sealing rings and protective valves effectively prevents oil leakage and moisture ingress, extending transformer service life.

2. High-Performance Insulating Oil: Uses high-quality mineral oil or environmentally friendly transformer oil with excellent insulation and cooling properties, enhancing reliability and safety.

3. Optimized Core and Winding Structure: Low-loss silicon steel and high-conductivity copper windings reduce hysteresis and eddy current losses, enabling low-noise and efficient operation.

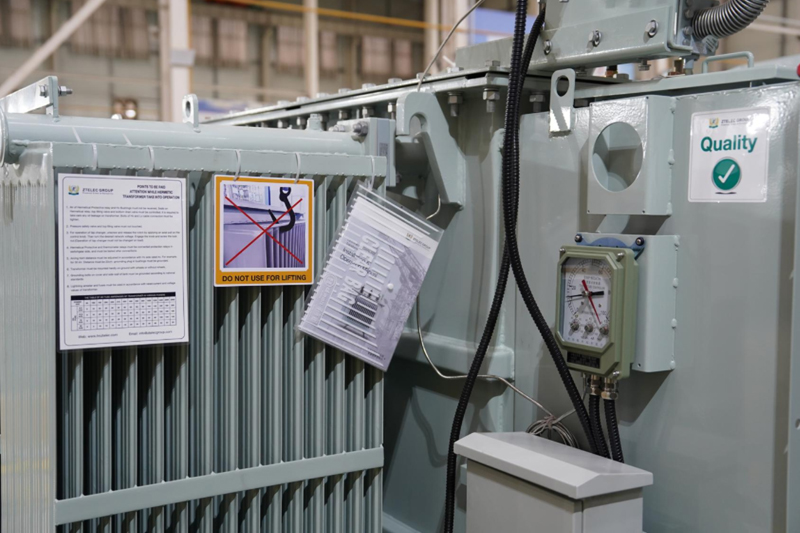

4. Intelligent Monitoring Interface: Equipped with temperature gauges, oil level indicators, and pressure relief devices, supporting remote monitoring and predictive maintenance.

3. Operational Advantages

The 10kV oil-immersed fully sealed transformer offers multiple advantages in operation, making it a popular choice for urban and rural grid renovation:

1. High Reliability: Fully sealed design and premium materials minimize failure rates, maintaining stable performance even in humid, dusty, or corrosive environments.

2. Low Maintenance: No frequent oil refilling or component replacement required, reducing labor and downtime costs.

3. Strong Short-Circuit Resistance: Optimized winding and high-strength core design can withstand grid short circuits and load fluctuations, enhancing grid stability.

4. Low Noise: Advanced core materials and winding technology significantly reduce magnetic and mechanical noise, suitable for residential areas, schools, and hospitals.

4. Energy Efficiency and Environmental Performance

Energy saving and environmental protection are crucial in modern grid upgrades. The 10kV oil-immersed fully sealed transformer achieves high efficiency through:

1. Low Loss Design: Optimized core and winding layout reduce no-load and load losses, improving energy transmission efficiency and reducing long-term operational costs.

2. Eco-Friendly Oil: Uses transformer oil compliant with international standards, minimizing environmental impact while offering excellent aging resistance for long service life.

3. Recyclable Materials: Core, copper windings, and steel tank are recyclable, supporting green grid initiatives.

4. Intelligent Energy Management: Combined with oil temperature monitoring and remote control systems, load optimization reduces energy waste.

5. Application Scenarios

The 10kV oil-immersed fully sealed transformer is widely used in urban and rural grid renovation, industrial parks, residential communities, and rural electrification. Its reliability and flexibility meet diverse distribution needs:

1. Urban and Rural Grid Upgrade: Replaces traditional oil-immersed open-type transformers to improve supply stability and safety.

2. Industrial Parks: Provides stable power under high-load and complex grid conditions, reducing risk of downtime.

3. Residential and Commercial Areas: Low noise and simple maintenance ensure comfort and safe operation for residents and businesses.

4. Rural Electrification: Fully sealed design prevents dust and moisture ingress, improving reliability in rural power grids.

6. Selection Recommendations

When selecting a 10kV oil-immersed fully sealed transformer, consider the following factors:

1. Capacity and Load Matching: Choose an appropriate capacity based on grid load to avoid overload or waste.

2. Environmental Suitability: Select models suitable for local climate and installation conditions to ensure long-term stable operation.

3. Brand and After-Sales Service: Prioritize certified and reputable manufacturers for product quality and timely support.

4. Energy Efficiency and Environmental Standards: Consider no-load and load losses and oil environmental compliance for economic and green operation.

The 10kV oil-immersed fully sealed transformer, with its fully sealed design, high efficiency, low maintenance, and adaptability to various environments, has become the top choice for urban and rural grid renovation. Whether in industrial parks, residential communities, or rural electrification projects, it provides reliable, safe, and efficient power distribution solutions. Selecting a high-quality 10kV oil-immersed fully sealed transformer enhances grid stability, reduces long-term operational costs, and supports energy-saving and environmental goals.

In the future development of smart grids, fully sealed oil-immersed transformers will continue to play a key role, providing solid support for urban and rural power upgrades and green energy development.
