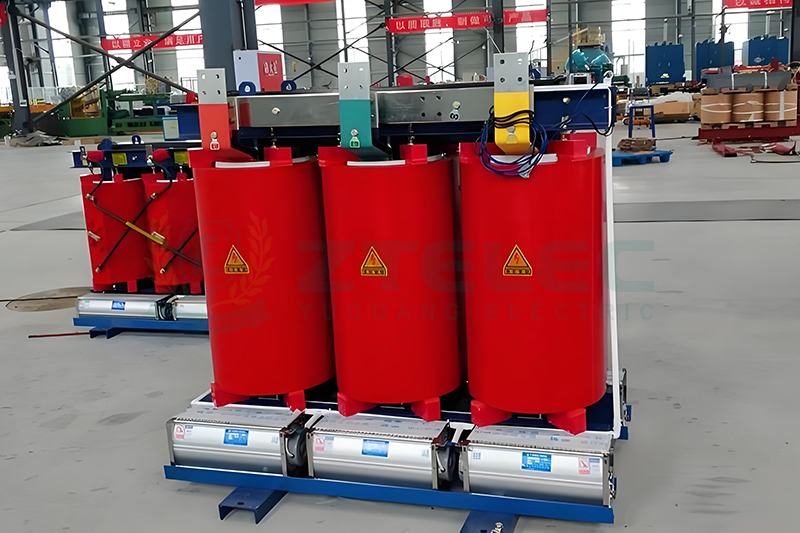

Why Data Centers and Industrial Plants Choose 20kV 2500kVA Dry-Type Transformers

Time：2025-12-20    Auther：ZTelec-www.ztelectransformer.com

With the rapid growth of cloud computing, digital infrastructure, and intelligent manufacturing, data centers and industrial plants are placing increasingly stringent demands on power supply systems. Among various medium-voltage solutions, the 20kV 2500kVA dry-type transformer has emerged as a mainstream choice due to its excellent safety performance, high energy efficiency, stable operation under heavy loads, and low total cost of ownership.

This article provides an in-depth analysis of the technical and economic reasons why this transformer configuration is particularly well suited for high-reliability and high-load applications.

Why 20kV Medium Voltage Is Becoming the Preferred Standard

Lower Line Current and Reduced Power Loss

Compared with conventional 10kV distribution systems, operating at 20kV significantly reduces line current for the same power level. Lower current directly translates into reduced transmission losses and improved overall energy efficiency, which is critical for large data centers and industrial parks with long cable runs.

Optimized Cable Selection and Infrastructure Costs

The reduction in current allows the use of cables with smaller conductor cross-sections. This not only decreases initial cable procurement costs but also simplifies installation, reduces space requirements in cable trenches, and lowers long-term thermal stress on conductors.

Alignment with Modern Power Grid Development

As power grids evolve toward higher capacity and smarter operation, 20kV is increasingly adopted as a standard industrial distribution voltage. Using 20kV transformers enables direct grid connection, simplifies distribution architecture, and enhances power supply reliability and scalability.

Why 2500kVA Capacity Matches Modern Load Characteristics

Stable Support for High-Density Power Demand

Data centers with dense server racks and industrial plants with automated production lines require continuous and stable high-capacity power supply. A 2500kVA dry-type transformer is capable of handling sustained high loads while maintaining stable voltage output, ensuring uninterrupted operation of critical equipment.

Scalable Design for Future Growth

The 2500kVA rating supports modular power system design. Enterprises can implement parallel operation to expand capacity as demand grows, avoiding oversized initial investments and enabling flexible, cost-effective power planning.

Why Dry-Type Transformers Are Ideal for Critical Facilities

Outstanding Safety and Environmental Performance

Dry-type transformers eliminate insulating oil entirely, removing the risks of oil leakage, fire, and explosion. Their flame-retardant and self-extinguishing characteristics make them especially suitable for indoor installations in data centers, factories, and other densely occupied facilities. This design also eliminates oil-related environmental pollution concerns.

High Reliability Under Continuous Operation

The 20kV 2500kVA dry-type transformer typically uses F-class or H-class insulation systems with excellent thermal endurance and aging resistance. Advanced ventilation and heat dissipation designs support long-term operation under high load conditions, while low partial discharge levels ensure long insulation life and stable electrical performance.

Minimal Maintenance and Lower Lifecycle Costs

Unlike oil-immersed transformers, dry-type transformers require little to no routine maintenance. There is no need for oil sampling, oil filtration, or oil replacement. Maintenance activities are simplified, reducing labor costs and minimizing the risk of unplanned downtime in mission-critical power systems.

Value of 20kV 2500kVA Dry-Type Transformers in Data Centers

Shorter Power Distribution Paths and Improved Power Quality

Dry-type transformers can be installed close to IT loads or within the same building, significantly shortening power transmission distances. This reduces voltage drops and electromagnetic interference, resulting in improved power quality for sensitive electronic equipment.

Seamless Integration with UPS and Redundant Architectures

These transformers integrate easily with uninterruptible power supply systems and support 2N or N+1 redundancy configurations. This makes them well suited for Tier III and Tier IV data centers that demand extremely high availability.

Efficient Coordination with Cooling Systems

Air-cooled dry-type transformers can operate in harmony with data center HVAC systems, enabling centralized thermal management and improving overall energy efficiency.

Advantages in Industrial Plant Applications

Adaptation to Harsh Industrial Environments

For applications involving dust, humidity, or corrosive gases, dry-type transformers can be designed with enclosed structures and higher protection ratings. This enhances durability and ensures reliable operation in demanding industrial environments.

Excellent Performance with Harmonic and Variable-Frequency Loads

Industrial plants increasingly rely on variable-frequency drives and power electronic equipment that generate harmonics. Dry-type transformers demonstrate strong resistance to harmonic currents, and reinforced insulation designs further enhance their adaptability to complex electrical conditions.

The 20kV 2500kVA dry-type transformer offers an optimal balance of voltage level, capacity, safety, and operational economy for data centers and industrial plants. Its advantages in energy efficiency, reliability, environmental protection, and scalability make it a future-oriented solution for modern medium-voltage distribution systems.

As demand continues to rise for high-reliability and high-energy-density power applications, this transformer configuration will play an increasingly important role in supporting digital infrastructure and advanced industrial production.
