500kVA 10kV American-Style Prefabricated Transformer Substation | Structure, Applications & Selection Guide
Time：2025-12-12 Auther：ZTelec-www.ztelectransformer.com
The 500kVA 10kV American-style prefabricated transformer substation is a compact and integrated power distribution unit combining a high-voltage switch section, a transformer, and low-voltage distribution equipment in one enclosure. Its American-style structural design is widely recognized for its small footprint, simplified installation process, and cost-effective performance. Because of its reliability and adaptability, it has become a common choice for urban distribution networks, industrial parks, commercial complexes, and residential power systems.
Core Components of the 500kVA 10kV American-Style Transformer Substation
1. 10kV High-Voltage Section
The high-voltage chamber is equipped with a load break switch and fuse protection systems such as Bay-O-Net combined with ELSP or K-Type fuses.
High-voltage cable connections typically use elbow-type connectors in 200A or 600A specifications, ensuring safe and efficient cable access.

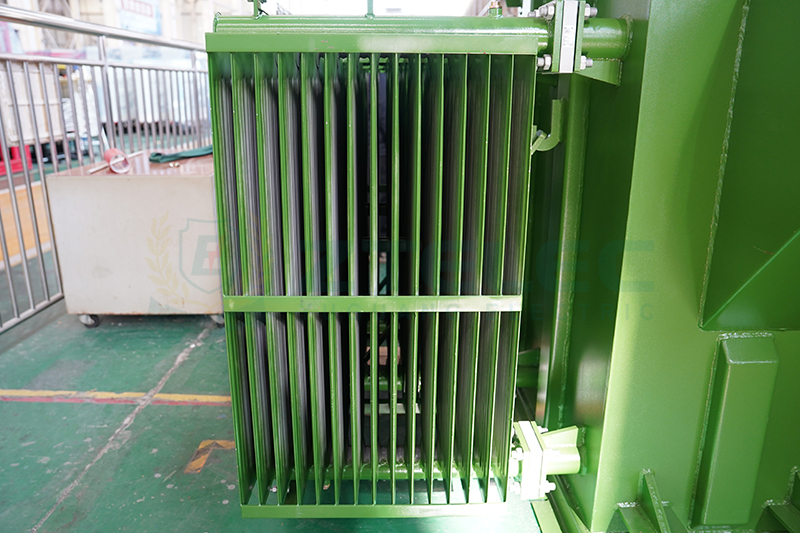

2. Dry-Type or Oil-Immersed Transformer
The built-in transformer has a rated capacity of 500kVA with standard voltage options of 10kV/0.4kV or 10kV/0.415kV.
It adopts an ONAN cooling method and a Class A insulation system.
Depending on environmental requirements, users may select mineral oil or ester oil as the insulating medium.
3. Low-Voltage Distribution Section
The low-voltage compartment typically includes MCCBs or MCBs, a busbar system, metering devices, and protection modules to ensure safe power delivery to downstream loads.
4. Enclosure Structure
The substation enclosure can be made from alu-zinc coated steel, stainless steel, or aluminum alloy.
It offers a protection level between IP44 and IP54, making it suitable for outdoor environments.
Additional built-in systems may include ventilation, anti-condensation devices, and anti-corrosion coatings.
Main Technical Parameters
Rated capacity: 500kVA
High-voltage rating: 10kV
Low-voltage rating: 400V / 230V
Transformer type: Dry-type or oil-immersed optional
Protection level: IP33 or higher
Enclosure materials: Steel, aluminum alloy, or corrosion-resistant non-metallic materials
Typical Application Scenarios
Urban distribution networks providing stable power for streets and residential communities
Industrial parks supplying electricity to small and medium-sized enterprises
Commercial facilities including office buildings, hotels, and shopping malls
Public infrastructure such as parks, schools, and hospitals
Distributed photovoltaic and wind power stations used as grid-connection nodes
Thanks to its compact structure and high reliability, the
500kVA 10kV American-style prefabricated transformer substation is well-suited for both new power installations and distribution system upgrades.
Why Choose an American-Style Pad-Mounted Transformer Substation?
One of the major advantages of this product is its cost-effectiveness.
Compared with traditional civil-built substations, total investment can be reduced by 30%–50%.
The engineering cycle—from equipment ordering to commissioning—can also be shortened by more than 60%.
Its flexible configuration allows high-voltage and low-voltage schemes to be tailored to real-world project requirements.
The design meets international safety standards and incorporates multiple layers of electrical protection, ensuring stable operation in diverse climates including humid, dusty, or high-temperature regions.
Maintenance and Service Requirements
To keep the substation operating safely and efficiently, regular inspection is essential.
Check the enclosure’s sealing and anti-corrosion layers to ensure durability.
For oil-immersed models, monitor the oil level and temperature periodically.
Inspect all high- and low-voltage cable connections for tightness, and remove debris from ventilation openings to maintain proper cooling.
In addition, periodic electrical testing and recalibration of protective devices are recommended.
Selection Guide for a 500kVA American-Style Transformer Substation
When choosing a model, confirm the applicable voltage standard—6kV, 10kV, 11kV, or 13.8kV—to match the local power grid.
Select the insulation medium based on project conditions:
mineral oil for standard applications or ester oil for projects requiring higher environmental safety or thermal stability.
For areas with high dust levels, such as Middle Eastern regions, a protection rating of IP54 or above is recommended.
Coastal users should prioritize stainless-steel enclosures to resist corrosion.
Choose the appropriate high-voltage protection scheme and connector type.
Available options include 200A elbow connectors, 600A deadbreak connectors, and ring-main connection configurations.
With its compact design, dependable operation, and strong cost-performance ratio, the500kVA 10kV American-style pad-mounted transformer substation has become a mainstream choice for modern distribution networks.
It supports applications in urban modernization, industrial park construction, commercial development, and renewable energy projects, while providing room for future expansion.
When selecting a supplier, it is advisable to review the manufacturer’s technical capabilities, certifications, engineering experience, and after-sales service system. A reliable supplier will ensure the substation meets industry standards and provide comprehensive technical support throughout the entire lifecycle.
